Previous
BACK TO 4 BEDROOM KIT HOMES
Next

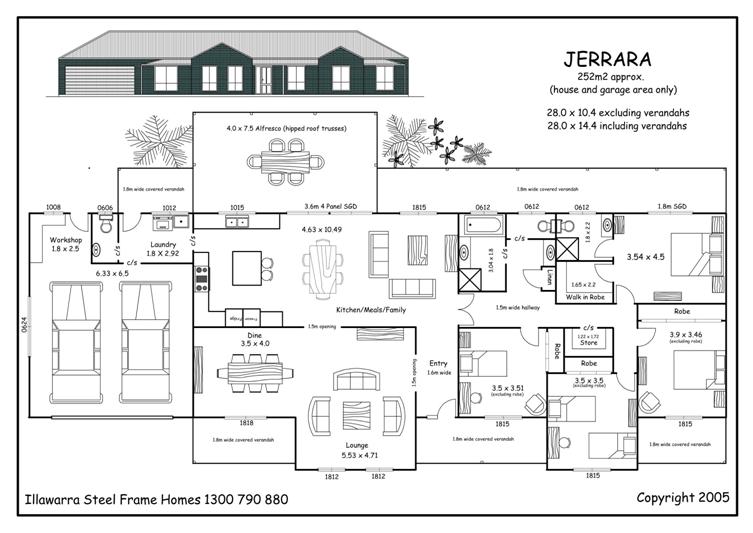

Features
·
Floor
area (house and garage) approximately 252m2
·
1.8m
wide verandah roof to front and back with Large Alfresco roof
·
Large
Double Garage and work area with internal access to house
·
4
large bedrooms with built in robes.
Master with walk in robe and ensuite
·
Large
open plan Kitchen, Family and Meals
·
Separate
formal lounge and dining
The
Jerrara is similar in style to the Berrima 4/Berrima
5 keeping the gable fronts with some variations to the floor plan. The wide entry and hallways suggest open and
spacious. Formal and everyday living
areas and a great sized outdoor Alfresco area.
Good size laundry with toilet accessible from outside. Walk in storage area.
PRICES BELOW ARE
SUPPLY OF MATERIALS ONLY
KIT TO LOCK UP STAGE $ 130,340.00
·
Pre-fabricated
2.7m wall frames and hipped and gable trusses @ 25 degree roof pitch
·
Roof
and ceiling battens and truss bracing
·
Lined
flat 1.8m wide split roof line verandah to front and back as drawn with 4.0m x
7.5m alfresco roof under house roof trusses
·
Colorbond
roof sheeting, capping, flashings, fascia, gutters and downpipes
·
50mm
Anticon blanket to roof and verandahs. Ametalin thermal
break wrap to external walls
·
Hardies
Newport cladding with accessories (alternative Hardies or Colorbond claddings
POA)
·
Aluminium
sliding windows and doors with screens as per plan
·
Entry
door and sidelight from Hume Vaucluse range.
Plain solid core doors to garage and laundry
·
Gainsborough
Tri-Lock Contemporary lever to entry and Bela levers
to garage and laundry
·
All
required fixings for materials supplied, Screw gun and Construction Manual
·
Plans
for submission to Council
·
Transport
to site to be priced as an extra (access for semi trailer is required)
FULL KIT including all
items above $ 159,070.00
·
R2.0
batts to external walls and R3.5 batts to ceilings
·
Plasterboard,
villaboard to wet areas, 90mm cornice, manhole and
all setting materials
·
75mm
pre-primed skirting and architrave
·
Hume
Pre-hung door and jamb units, cavity sliders and Smartrobes
with feature design doors
·
Gainsborough
levers to passage doors and cavity sliders, privacy to bathrooms, flushpulls to store, kitchen slider and robes
FLOOR SYSTEM including verandahs (excluding garage slab) $ 49,110.00
90mm PIERS $ 13,000.00
·
Steel
bearers and joist with adjustable piers @ approx. 2.3m centres and height of 1m
·
Structafloor boards to house area and Merbau hardwood decking to verandahs
·
Under
floor insulation R2.2 (foilboard) to house area
Prices
current as at JULY 2023
