Features
·
Floor
area 60m2 with option of Gable or Skillion Roof Design

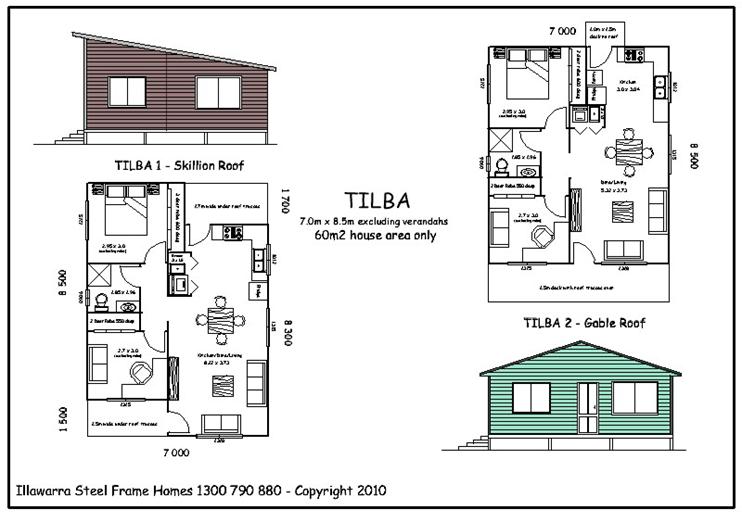

Our Tilba
offers the option of Skillion or Gable roof design. Slightly different layout,
orientation and verandah placement but both offer a secondary back access with
landing. The Tilba 1
has a Skillion roof and verandahs to front and back
whereas The Tilba 2 has Gable roof with
larger front verandah and only landing to the back. Gable or Skillion roof can be used for either
design. Both have open plan
living/dining/kitchen with laundry cupboard incorporated and two good sized
bedrooms with robes.
PRICES BELOW ARE SUPPLY OF MTERIALS ONLY
KIT TO LOCK UP STAGE
TILBA 1 with Skillion Roof
$ 49,640.00
TILBA 2 with Gable Roof $
46,060.00
·
Pre-fabricated
2.4m wall frames with gable trusses @ 18 degree pitch or 10 degree skillion trusses (not raked
internally) depending on design
·
(2.7m
wall height, Hipped or Skillion trusses are all optional extras)
·
Roof and
ceiling battens and truss bracing
·
Verandahs - 1.5m and 1.7m raked and lined to Tilba 1. 1.5m flat
and lined to Tilba 2
·
Aluminium
sliding windows and doors with screens as per plan
·
Colorbond
roof sheeting, capping, flashings, fascia, gutters and downpipes
·
50mm Anticon blanket to roof and verandahs. Ametalin thermal
break wrap to external walls
·
450mm
eave overhang to front and sides on Tilba 1
(skillion) and 450mm eave overhang to sides only on Tilba 2 (gable)
·
Hardies
Newport cladding with accessories (alternative Hardies claddings or Colorbond
POA)
·
Entry
door from Hume Vaucluse range and plain solid core door to rear (kitchen)
·
Gainsborough
Bela lever door furniture
·
All
required fixings for materials supplied.
Screw Gun and Construction Manual
·
Plans for
submission to Council
·
Transport
to site is priced as an extra (access for semi-trailer is required)
FULL KIT including all items above
TILBA 1 with Skillion Roof
$ 58,940.00
TILBA 2 with Gable Roof $ 55,500.00
·
R2.0
batts to external walls and R3.5 batts to ceilings
·
Plasterboard,
wet area board, 90mm cornice, manhole and all setting materials
·
75mm
Pre-primed pine skirting and architrave
·
Hume
Pre-hung door and jamb units and Smartrobe robe units
with feature panel doors
·
Gainsborough
levers to passage doors with privacy lock to bathroom. Flushpulls to robes
FLOOR SYSTEM including piers
TILBA 1 with Skillion Roof
$ 17,210.00
TILBA 2 with Gable Roof $ 18,350.00
·
Steel
bearers and joist, 90mm adjustable piers @ approx. 2.3m centres and 1m high
·
Structafloor boards to house area and Merbau
hardwood decking to verandahs
·
Under
floor insulation R2.2 (foilboard) to house area
Prices current as at JULY 2023
