Features
·
Floor
area approximately 60m2
·
Skillion
roof with skillion roof verandah (Option as one roof line or separate)
·
2.4 and
2.7 wall height options priced
·
Primeline Newport cladding and Colorbond cladding options
priced

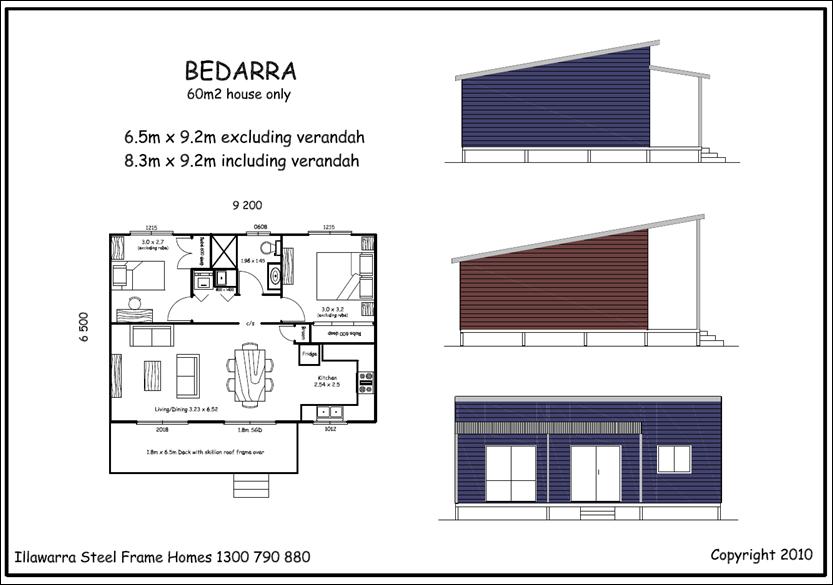

A roomy two bedroom with open
plan living/dining/ kitchen area opening onto a 1.8m wide deck area. Both
bedrooms have built in robes. A
dedicated Laundry/broom cupboard or option to have within the bathroom.
We have used this design to give some comparable
costs for 2.4m verses 2.7m wall height and Hardies Newport wall cladding verses
Colorbond wall cladding.
PRICES
BELOW ARE SUPPLY OF MATERIALS ONLY
KIT TO LOCK UP STAGE
2.4m Walls / Newport
Cladding $ 44,640.00
2.7m Walls / Newport
Cladding $ 46,060.00
2.4m Walls / Colorbond Cladding
$ 43,230.00
2.7m Walls / Colorbond Cladding
$ 44,010.00
·
Pre-fabricated
2.4m or 2.7m wall frames and skillion
trusses @ 8 – 10 degree roof pitch
·
Roof and
ceiling battens and truss bracing
·
Verandah
– 1.8m x 6.5m lined and raked skillion roof
·
Colorbond
roof sheeting, capping, flashings, fascia, gutters and downpipes
·
50mm Anticon blanket to roof and verandah. Ametalin thermal
break wrap to external walls
·
450mm
raked eave overhang to front and back only
·
Aluminium
sliding windows and doors with screens as per plan
·
Hardies
Newport cladding or Colorbond wall cladding with accessories (from floor level)
·
All
required screws/fixings for materials supplied.
Screw Gun and Construction Manual
·
Plans for
submission to Council
·
Transport
to site is priced as an extra (access for semi-trailer is required)
FULL KIT including all items above
2.4m Walls / Newport
Cladding $ 54,830.00
2.7m Walls / Newport
Cladding $ 56,630.00
2.4m Walls / Colorbond Cladding
$ 53,590.00
2.7m Walls / Colorbond Cladding
$ 54,750.00
·
R2.0
batts to external walls and R3.5 batts to ceilings
·
Plasterboard,
wet area board, 90mm cornice and all setting materials
·
75mm
Pre-primed pine skirting and architrave
·
Hume
Pre-hung doors and jambs, cavity slider and Smartrobe
units with feature panel doors
·
Gainsborough
levers to passage doors, privacy lock to bathroom, flushpulls
to cavity slider and robe doors
FLOOR SYSTEM including piers
2.4m or 2.7m Newport Cladding
$ 16,380.00
2.4m or 2.7m Colorbond Cladding
$ 15,750.00
·
Steel
bearers and joist, 90mm adjustable piers @ approx. 2.3m centres and height of
1m
·
Structafloor boards to house area and Merbau
hardwood decking to verandahs
·
Under
floor insulation R2.2 (foilboard) to house area
Prices current as at JULY 2023
