Features
·
Floor area (house and garage)
approximately 276m2
·
1.8m wide verandah roof to front and
large alfresco to back
·
Large Double Garage and work area
with internal access to house
·
4 large bedrooms with Playroom and
walk in store room
·
Master with Walk in robe and Ensuite
·
Large open plan Kitchen, Family and
Dining and separate formal lounge

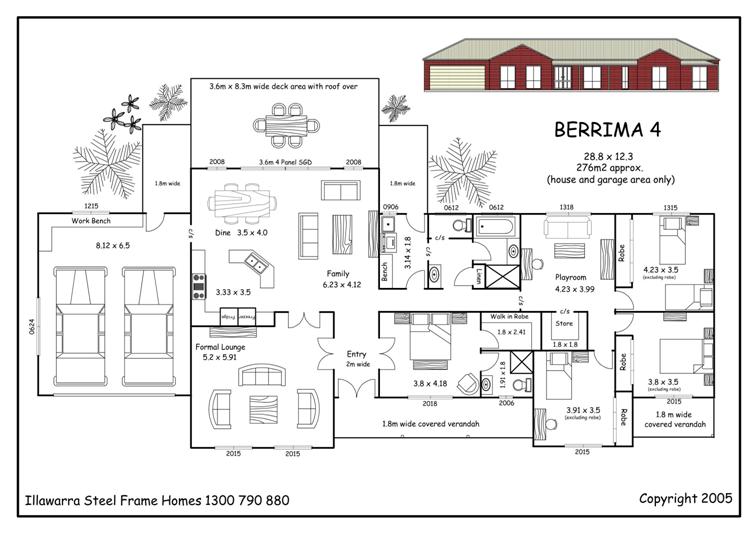

The Berrima 4 is a classic country
style with two large gables to the front.
This design can easily modify to a 5 bedroom plan by closing off the
playroom area as seen in the Berrima 5 version.
All rooms are good size with large built in robes. Good sized laundry with toilet accessible
from outside. Walk in storage area.
PRICES BELOW ARE SUPPLY OF MATERIALS ONLY
KIT TO LOCK UP STAGE
$ 126,310.00
·
Pre-fabricated 2.7m wall frames and
trusses @ 25 degree roof pitch
·
Roof and ceiling battens and truss
bracing
·
450mm eave overhang to back and
front 2 gables only
·
1.8m split roof line to front. 3.6m x 8.3m roof to rear under house roof
trusses. Both lined with FC sheeting and
PVC joiners
·
Aluminium sliding windows and doors
with screens as per plan
·
Colorbond roof sheeting, capping,
flashings, fascia, gutters and downpipes
·
50mm Anticon
blanket to roof and verandah. Ametalin thermal break
wrap to external walls
·
Hardies Newport cladding with
accessories (alternative Hardies or Colorbond claddings POA)
·
Entry doors from the Hume Vaucluse
range. Plain solid core doors to garage
and laundry
·
Gainsborough Tri-Lock Contemporary
lever to entry (1 only) and Bela Lever to garage and
laundry
·
All required fixings for materials
supplied, screw gun and Construction Manual
·
Plans for submission to Council
·
Transport to site to be priced as an
extra (semi-trailer access is required)
FULL KIT including all items above $ 156,790.00
·
R2.0 batts to external walls and
R3.5 batts to ceilings
·
Plasterboard, villaboard
to wet areas, 90mm cornice and all setting materials
·
75mm pre primed skirting and
architrave
·
Hume pre-hung door and jamb units,
cavity sliders and Smartrobes with feature design
doors
·
Gainsborough levers to passage doors
with privacy locks to bathrooms, cavity
locks with privacy to bathrooms, flushpulls to robe
and store
FLOOR SYSTEM including verandahs
(excluding garage slab) $ 46,340.00
90mm PIERS $ 16,240.00
·
Steel bearers and joist with
adjustable piers @ approx. 2.3m centres and height of 1m
·
Structafloor boards to house area and Merbau
hardwood decking to verandahs
·
Under floor insulation R2.2 (foilboard) to house area
Prices current as at JULY 2023
