5 Bedroom Kit Homes
Features
·
Floor
area approximately 181m2 with optional Double Garage (priced separately below)
·
Large
double opening sliders from living and master to covered deck
·
Spacious
master bedroom with walk-in dressing room and large ensuite
·
3
bedrooms with robes, walk-in store room and pantry

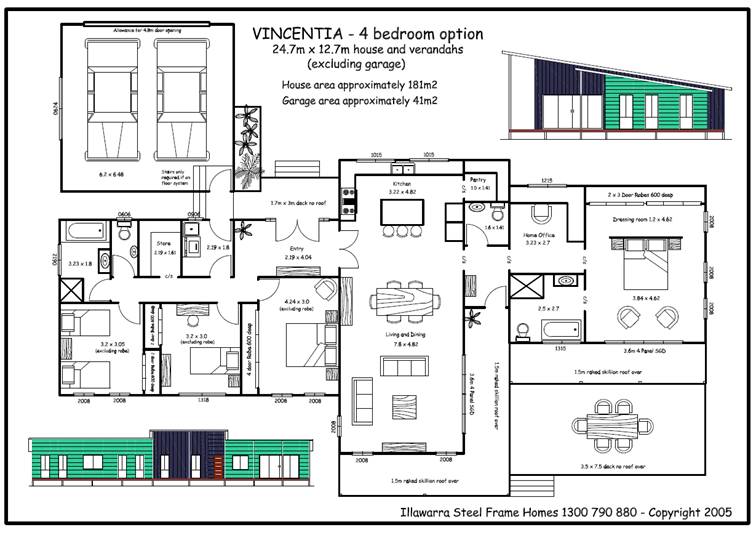

The
Vincentia 4 is the same as our Vincentia but we have added some wall, a door
and robe to the TV area creating the 4th bedroom option. All the same qualities. Designed for entertaining. Welcoming entry foyer. Large open plan living, dining, kitchen that
melds with outdoors through large sliding doors. The master bedroom is very spacious with walk
in dressing room and family sized bathroom including a bath rather than the
usual ensuite size.
This room has double opening slider to open up to the outdoors. The skillion roof frame continues over the
1.5m deck area.
PRICES BELOW ARE
SUPPLY OF MATERIALS ONLY
KIT TO LOCK UP STAGE $ 114,340.00
·
Pre-fabricated
2.4m wall frames and skillion trusses @ 8 – 10 degree roof pitch to house
·
Roof
and ceiling battens and truss bracing
·
Verandah
1.5m wide under roof frame to living and bedroom areas
·
450mm
wide eaves framing and linings to house and garage (no overhang to verandah)
·
Stegbar Aluminium windows and doors with screens and pre
primed reveals as per plan
·
Colorbond
roof sheeting, capping, flashings, fascia, gutters and downpipes
·
50mm
Anticon blanket to roof and verandahs. Ametalin thermal
break wrap to external walls
·
Hardies
Newport cladding with accessories (alternative Hardies or Colorbond claddings
POA)
·
Feature
design doors from Hume Vaucluse range or similar to entry, laundry and back
deck
·
Gainsborough
Tri-lock Contemporary levers to all entry doors
·
All
required fixings for materials supplied, screw gun and construction manual
·
Plans
for submission to Council
·
Transport
to site to be priced as an extra (access for semi trailer is required)
FULL KIT including all
items above $ 141,030.00
·
R2.0
batts to external walls and R3.5 batts to ceilings
·
Plasterboard,
villaboard to wet areas, 90mm cornice and all setting
materials
·
75mm
pre-primed pine skirting and architrave
·
Hume
Pre-hung door and jamb units, cavity sliders and Smartrobes
with feature design doors
·
Gainsborough
Levers to passage doors, cavity locks, privacy to bathrooms, flushpulls to robe doors
FLOOR SYSTEM including
decks as drawn $ 40,870.00
90mm PIERS $ 12,940.00
·
Steel
bearers and joist with adjustable piers @ approx. 2.3m centres and 1m high
·
Structafloor boards to house area and Merbau hardwood decking to verandahs
·
Under
floor insulation R2.2 (foilboard) to house area
DOUBLE GARAGE (excluding
slab and garage door)
LOCK UP KIT $ 26,490.00
FULL KIT $ 29,390.00
·
2.7m
wall height with 8 - 10 degree skillion trusses, 450mm eaves
·
Newport
cladding with Ametalin wrap, colorbond
roof and blanket, window and external door with lever
·
Lined
with wet area board if full kit chosen. (no wall or ceiling batts included in
lock up or full kit option)
Prices
current as at JULY 2023
