Features
·

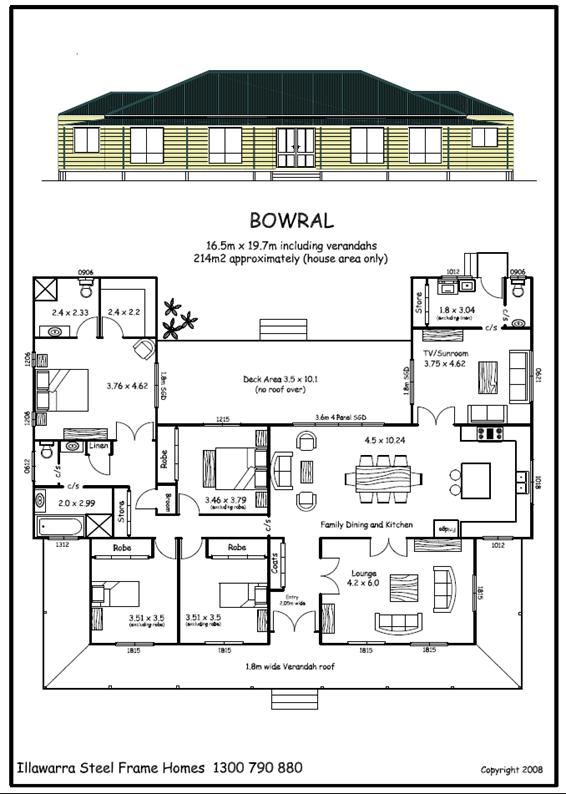

Floor
area approximately 214m2
·
Verandah
roof to front and sides
·
Three
Living areas with open plan kitchen, dining and family
·
Double
opening sliding doors to back deck area
·
Large
Master bedroom with Ensuite and Walk in Robe
·
Three
good size bedrooms with built in robes
·
Plenty
of storage with linen, coats, broom and store cupboards
The
Bowral has a lovely country feel. The
sliding doors offering access from all areas to the large back deck (no roof
over). The master bedroom is situated
well away from the other bedrooms and living areas allowing for extra
privacy. All rooms are very
generous in size.
PRICES BELOW ARE
SUPPLY OF MATERIALS ONLY
KIT TO LOCK UP STAGE $ 114,730.00
·
Pre-fabricated
2.7m wall frames and hipped trusses @ 25 degree roof pitch
·
Roof
and ceiling battens and truss bracing
·
No
eave overhang throughout
·
Lined
flat 1.8m with split roof line verandah to front and sides (no split POA)
·
Aluminium
sliding windows and doors with screens as per plan.
·
Option
for awning windows (wind out) to allow for no eave overhangs (POA).
·
Colorbond
roof sheeting, capping, flashings, fascia, gutters and downpipes
·
50mm
Anticon blanket to roof and verandahs. Ametalin thermal
break wrap to external walls
·
Hardies
Newport cladding with accessories (alternative Hardies or Colorbond claddings
POA)
·
Feature
design entry doors from Hume Vaucluse range or similar. Plain solid core door to Laundry
·
Gainsborough
Tri-Lock Contemporary lever to entry (1 only) and Bela
lever to Laundry
·
All
required fixings for materials supplied, Screw gun and Construction Manual
·
Plans
for submission to Council
·
Transport
to site to be priced as an extra (access for semi trailer is required)
FULL KIT including all
items above $ 145,490.00
·
R2.0
batts to external walls and R3.5 batts to ceilings
·
Plasterboard,
villaboard to wet areas, 90mm cornice, manhole and all
setting materials
·
75mm
pre-primed skirting and architrave
·
Hume
Pre-hung door and jamb units, cavity sliders and Smartrobes
with feature design doors
·
Gainsborough
Levers to passage doors, cavity locks, privacy locks to bathrooms, flushpulls to robes and store
FLOOR SYSTEM including verandahs/decks $
51,010.00
90mm PIERS $ 18,770.00
·
Steel
bearers and joist with adjustable piers @ approx. 2.3m centres and height of 1m
·
Structafloor boards to house area and Merbau hardwood decking to verandahs
·
Under
floor insulation R2.2 (foilboard) under house area
only
Prices
current as at JULY 2023
