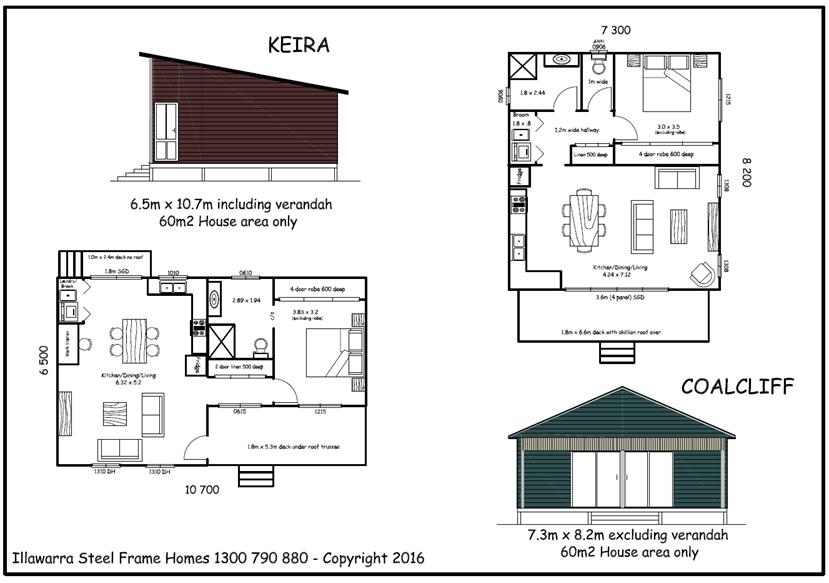

Our Keira and Coalcliff offer very
roomy one bedroom layouts. If you don’t
need the second bedroom then this is making the most of the full 60m2 granny flat
restrictions. The Keira has a skillion roof
ith a verandah under the house roof frame. The Coalcliff
has a gable roof with separate skillion verandah roof. Either design can be priced to suit gable,
hipped or skillion trusses. The Keira has very large bedroom and ensuite with 4 door robe unit, great size linen in hallway
and a back access via sliding glass doors.
The Coalcliff also has a
good-sized bedroom and 4 door robe unit, linen in the quite roomy hallway,
separate toilet and bathroom, large double opening sliding doors to front
verandah bringing the outdoors in.
PRICES
BELOW ARE SUPPLY OF MATERIALS ONLY
KIT TO
LOCK UP STAGE
COALCLIFF $
45,570.00
KEIRA $
47,050.00
·
Pre-fabricated
2.4m wall frames with 10 degree skillion trusses to the Keira. 22 degree gable trusses to the Coalcliff
·
(Option
for 2.7m walls, skillion, hipped or gable trusses)
·
Roof and
ceiling battens and truss bracing
·
Verandahs - 1.8m x
6.6m separate lined skillion roof frame to the Coalcliff. 1.8m x 5.3m raked and
lined under roof frame to the Keira
·
Aluminium
sliding windows and doors with screens as per plan except where there is no
eave overhang (gable ends) and here there will be awning window – Coalcliff
toilet 0906
·
Colorbond
roof sheeting, capping, flashings, fascia, gutters and downpipes
·
50mm Anticon blanket to roof and verandahs. Ametalin thermal
break wrap to external walls
·
450mm
eave overhang to front and back on Keira / no gable end overhang (sides)
·
450mm
eave overhang to sides on Coalcliff / no gable end
overhang (front and back)
·
Hardies Newport
cladding with accessories (alternative Hardies or Colorbond claddings POA)
·
Entry
door from Hume Vaucluse range with Gainsborough Bela
lever to Keira design
·
All
required screws and fixings for materials supplied. Screw Gun and Construction Manual
·
Plans for
submission to Council
·
Transport
to site is priced as an extra (access for semi-trailer is required)
FULL KIT
including all items above
COALCLIFF $
55,150.00
KEIRA $
56,440.00
·
R2.0
batts to external walls and R3.5 batts to ceilings
·
Plasterboard,
wet area board, 90mm cornice, manhole and all setting materials
·
75mm
Pre-primed pine skirting and architrave
·
Hume
Pre-hung doors and jambs, cavity sliders and Smartrobe
units with feature panel doors
·
Gainsborough
levers to passage doors, privacy lock to bathroom, cavity locks with privacy to
bathroom, flushpulls to robes
FLOOR
SYSTEM including piers
COALCLIFF $
16,530.00
KEIRA $
17,710.00
·
Steel
bearers and joist, 90mm adjustable piers @ approx. 2.3m centres and 1m high
·
Structafloor boards to
house area and Merbau hardwood decking to verandahs
·
Under
floor insulation R2.2 (foilboard) to house area
Prices current as at JULY 2023
