Features
·

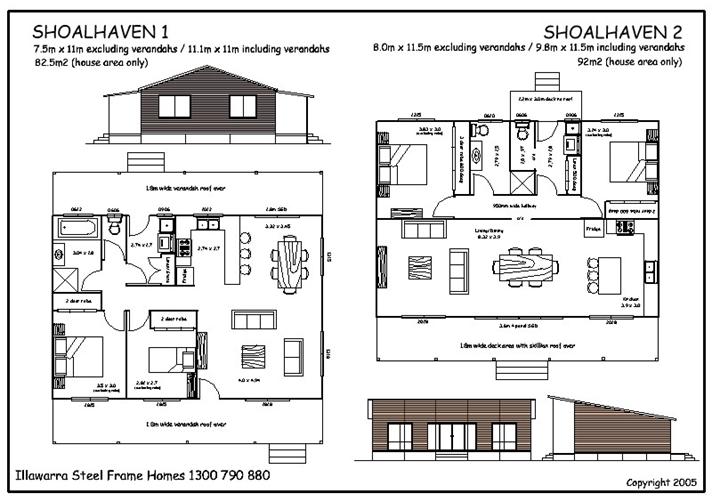

SHOALHAVEN
1 - Floor area 82.5m2
·
Gable
roof with 1.8m verandah to front and back and no eave overhangs to sides
·
SHOALHAVEN
2 – Floor area 92m2 with 1.8m verandah to front only.
·
Option
of Gable or Skillion roof design.
·
Skillion
option includes eaves to sides as well as front and
back as drawn whereas the Gable option has eaves to back only
Here we have the choice of
two floor plans, two roof designs. Both
have good size bedrooms and plenty of open plan living areas. Robes to each
bedroom and separate Storage/Linen. A carport or garage can easily be added to
either design. The perfect holiday house.
PRICES BELOW ARE SUPPLY OF MATERIALS ONLY
KIT TO LOCK UP STAGE
SHOALHAVEN 1 Gable Roof
$ 57,180.00
SHOALHAVEN 2 Gable Roof
$ 56,500.00
SHOALHAVEN 2 Skillion Roof
$ 61,660.00
·
Pre-fabricated
2.4m wall frames and Gable trusses @ 22 degree roof pitch or Skillion trusses @
8 – 10 degree pitch on Shoalhaven 2
·
Roof
and ceiling battens and truss bracing
·
Lined
verandah 1.8m wide to front and back Shoalhaven 1 and front only Shoalhaven 2
·
Colorbond
roof sheeting, capping, flashings, fascia, gutters and downpipes
·
50mm
Anticon blanket to roof and verandahs. Ametalin thermal
break wrap to external walls
·
No
eave overhangs to Shoalhaven 1 and 450mm eave overhang to back only on
Shoalhaven 2
·
Aluminium
sliding windows and doors with screens as per plan
·
Hardies
Newport cladding with accessories (alternative Hardies claddings or Colorbond
POA)
·
Feature
entry door from Hume Vaucluse range and plain solid core door to laundry
·
Gainsborough
Bela Lever to Entrance door and Laundry
·
All
required fixings for materials supplied.
Screw gun and construction manual
·
Plans
for submission to Council
·
Transport
to site to be priced as an extra (access for semi-trailer is required)
FULL KIT including all items above
SHOALHAVEN 1 Gable Roof
$ 68,120.00
SHOALHAVEN 2 Gable Roof
$ 69,600.00
SHOALHAVEN 2 Skillion Roof
$ 75,130.00
·
R2.0
batts to external walls and R3.5 batts to ceilings
·
Plasterboard,
wet area board, 90mm cornice, manhole and all setting materials
·
75mm
pre-primed pine skirting and architrave
·
Hume
pre-hung door and jamb units, cavity sliders and Smartrobes
with feature panel doors
·
Gainsborough
Levers to passage doors with privacy/cavity locks to bathrooms. Flushpulls to robes
FLOOR SYSTEM including piers
SHOALHAVEN 1 $ 28,910.00
SHOALHAVEN 2 $ 27,720.00
·
Steel
bearers and joist with adjustable piers @ approx. 2.3m centres and of 1m
·
Structafloor boards to house area and Merbau hardwood decking to verandas
·
Under
floor insulation R2.2 (foilboard) to house area
Prices current as at JULY 2023
