Features
·
Floor

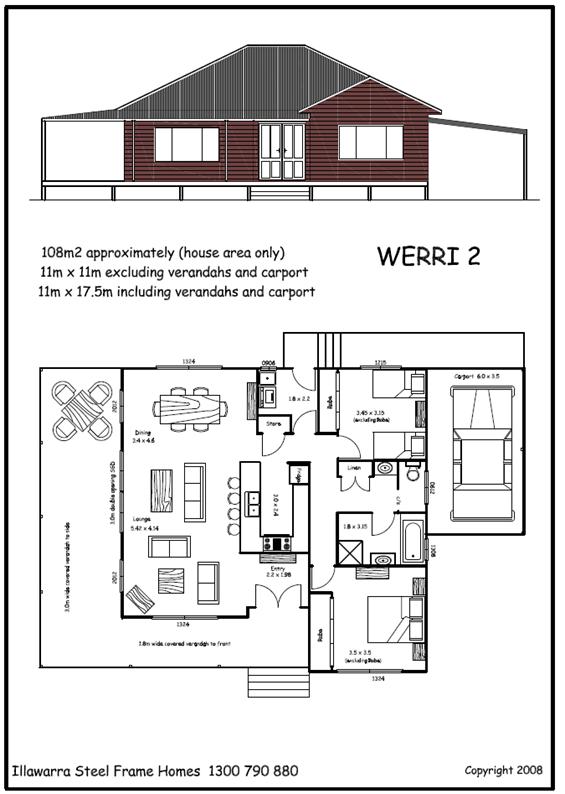

area approximately 108m2
·
1.8m
wide verandah roof to front and 3.0m wide to side
·
2.7m
ceiling height and 25 degree roof pitch
·
Carport
separate to roof line (priced separately below)
·
Large
open plan living, dining and kitchen
This is a larger style 2
bedroom home for the retiree or the family holiday home. Bedrooms and bathroom are generous. Good sized lounge, kitchen and dining areas.
3.0m wide deck area off this area makes for great entertaining and allows you
to make the most of any views.
PRICES BELOW ARE SUPPLY OF MATERIALS ONLY
KIT TO LOCK UP STAGE $
72,800.00
·
Pre-fabricated
2.7m frames and trusses @ 25 degree pitch
·
Roof
and ceiling battens and truss bracing
·
Lined
flat verandah 1.8m wide to front and 3.0m wide to side
·
Aluminium
sliding windows and doors with screens as per plan
·
Colorbond
roof sheeting, capping, flashings, fascia, gutters and downpipes
·
50mm
Anticon blanket to roof and verandah and Ametalin thermal break wrap to external walls
·
Hardies
Newport cladding with accessories (alternative Hardies claddings or Colorbond
POA)
·
Feature
entry doors from Hume Vaucluse range or similar. Plain solid core door to
Laundry
·
Gainsborough
Tri-lock Contemporary Lever to Entry and Bela Lever
to Laundry
·
All
required fixings for materials supplied, screw gun and Construction manual
·
Plans
for submission to Council
·
Transport
to site to be priced as an extra (access for semi-trailer is required)
FULL KIT including all items above $ 86,950.00
·
R2.0
batts to external walls and R3.5 batts to ceilings
·
Plasterboard,
wet area board, 90mm cornice, manhole and all setting materials
·
75mm
pre-primed pine skirting and architrave
·
Hume
Pre-hung door and jamb units, cavity slider and Smartrobes
with feature panel doors
·
Gainsborough
Levers to passage doors with privacy/cavity locks to bathroom and flushpulls to robes
FLOOR SYSTEM includes verandah areas $ 26,390.00
90mm PIERS $ 8,710.00
·
Steel
bearers and joist with adjustable piers @ approx. 2.3m centres and height of 1m
·
Structafloor boards to house area and Merbau hardwood decking to verandahs
·
Under
floor insulation R2.2 (foilboard) under house area
CARPORT $ 6,640.00
·
Skillion
roof beams, posts, colorbond roof sheets (no roof
blanket), fascia, gutter and downpipes, lined with 4.5mm FC sheeting and with
PVC joiners
Prices current as at JULY 2023
