Features
·

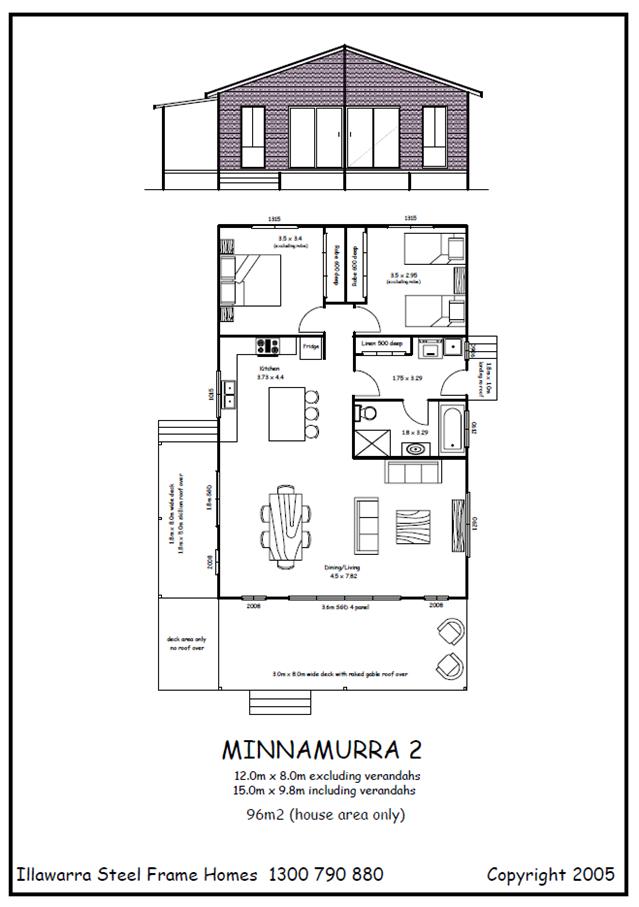

Floor
area approximately 96m2
·
1.8m
wide skillion roof to side entry and 3.0m wide raked roof to front
·
2.4m
ceiling height and 22 degree gabled roof trusses
·
Two
large bedrooms with built in robes.
Ideal design for the small
holiday home. Both bedrooms are of good
size with built in robes. Plenty of storage.
Large laundry and bathroom areas. Open plan kitchen, lounge and dining
with access to large covered deck through double sliding doors as though a
continuation of the living areas. These
doors are complimented either side with full length windows to provide
excellent views and a feeling of open space for a small design.
PRICES BELOW ARE SUPPLY OF MATERIALS ONLY
KIT TO LOCK UP STAGE $
65,750.00
·
Pre-fabricated
2.4m wall frames and 22 degree pitch gabled trusses
·
Roof
and ceiling battens and truss bracing
·
(hipped
or skillion trusses are an optional extra)
·
1.8m
wide lined skillion verandah roof to side entry and 3.0m wide raked roof frame
to front verandah, lined with steel posts, beams and post bases
·
Aluminium
sliding windows and doors with screens as per plan
·
Colorbond
roof sheeting, flashings, fascia, gutters and downpipes
·
50mm
Anticon blanket to roof and verandahs. Ametalin thermal
break wrap to external walls
·
Hardies
Newport cladding with accessories (alternative Hardies claddings or Colorbond
POA)
·
1
plain (no pattern) solid core door with Gainsborough Bela
Lever to Laundry
·
All
required fixings for materials supplied.
Screw gun and construction manual
·
Plans
for submission to Council
·
Transport
to site to be priced as an extra (access for semi-trailer is required)
FULL KIT including all items above $ 77,880.00
·
R2.0
batts to external walls and R3.5 batts to ceilings
·
Plasterboard,
wet area board or villaboard to bathrooms, 90mm
cornice, manhole and all setting materials
·
75mm
pre primed pine skirting and architrave
·
Hume
pre-hung door and jamb units and Smartrobes with
feature panel doors
·
Gainsborough
Levers to passage doors with privacy lock to bathroom. Flushpulls to robes
FLOOR SYSTEM (includes verandah areas) $ 22,800.00
90MM PIERS $ 8,610.00
·
Steel
bearers and joist with adjustable piers @ approx. 2.3m centres and height of 1m
·
Structafloor boards to house area and Merbau hardwood decking to verandahs
·
Under
floor insulation R2.2 (foilboard) under house area
Prices current as at JULY 2023
