Features
·
Floor
area approximately 261m2
·
Verandah
roof to front and sides
·
Double
garage and workshop area with internal access
·
Three
Living areas with open plan kitchen, dining and family
·
Large
Master bedroom with Ensuite and Walk in Robe
·
Plenty
of storage with linen, coats, broom and store cupboards

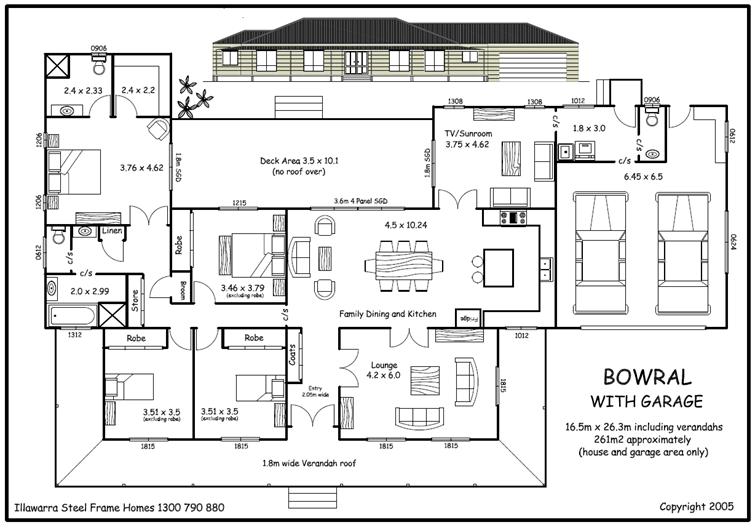

Here
we have taken the standard Bowral design and added a large double garage and
workshop area. The laundry has been
moved to suit but otherwise none of the great qualities and design of the
Bowral have been changed.
PRICES BELOW ARE
SUPPLY OF MATERIALS ONLY
KIT TO LOCK UP STAGE $ 124,230.00
·
Pre-fabricated
2.7m wall frames and hipped trusses @ 25 degree roof pitch
·
Roof
and ceiling battens and truss bracing
·
1.8m
wide, lined verandah with split roof line (separate fascia and gutter) to front
and sides
·
No
eave overhangs throughout
·
Aluminium
sliding windows and doors with screens as per plan.
·
Option
for awning windows to allow for no eaves (POA)
·
Colorbond
roof sheeting, capping, flashings, fascia, gutters and downpipes
·
50mm
Anticon blanket to roof and verandahs. Ametalin thermal
break wrap to external walls
·
Hardies
Newport cladding with accessories (alternative Hardies or Colorbond claddings
POA)
·
Feature
entry door from Hume Vaucluse range or similar.
Plain solid core doors to laundry and garage
·
Gainsborough
Tri-Lock Contemporary lever to entry (1 only) and Bela
levers to laundry and garage
·
All
required fixings for materials supplied, Screw gun and Construction Manual
·
Plans
for submission to Council
·
Transport
to site to be priced as an extra (access for semi trailer is required)
FULL KIT including all
items above $ 156,870.00
·
·
R2.0
batts to external walls and R3.5 batts to ceilings
·
Plasterboard,
villaboard to wet areas, 90mm cornice, manhole and
all setting materials
·
75mm
pre-primed skirting and architrave
·
Hume
Pre-hung door and jamb units, cavity sliders and Smartrobes
with feature design doors
·
Gainsborough
Lever to passage doors, cavity locks, privacy to bathrooms, flushpulls
to robes and store
FLOOR SYSTEM including
verandah (excluding garage slab) $ 51,600.00
90mm PIERS $ 19,350.00
·
Steel
bearers and joist with adjustable piers @ approx. 2.3m centres and height of 1m
·
Structafloor boards to house area and Merbau hardwood decking to verandahs
·
Under
floor insulation R2.2 (foilboard) to house area
Prices
current as at JULY 2023
